Next-Gen Case Packer Machine Selection, Engineering & Procurement Guide: Building High-Throughput End-of-Line Packaging Systems
Empowering Global Manufacturing Operations with Servo-Driven Robotics, Vision-Guided Quality Control, and Turnkey Integration by EAC Machinery Co., Ltd.
1. The Critical Role of Advanced Case Packer Machines in Modern Packaging Automation
In modern high-speed manufacturing environments—spanning food & beverage processing, personal care, pharmaceutical, cosmetic formulation, and chemical production—end-of-line efficiency directly dictates Overall Equipment Effectiveness (OEE). The Case Packer Machine stands as the vital bridge between primary/secondary packaging (such as liquid fillers, tube sealers, and cartoning units) and tertiary distribution logistics (palletizing and warehousing).
Historically, manual secondary packaging created severe operational bottlenecks, elevated labor overhead, and introduced human errors including improper pack counts, damaged corrugated cartons, and inconsistent tape sealing. Modern automatic case packers engineered by EAC Machinery Co., Ltd. eliminate these vulnerabilities by combining multi-axis motion control, precision servo dynamics, and pneumatic/robotic gripping heads capable of packing up to 35+ shipping cases per minute with millimeter-level positional repeatability.
Eliminating Line Bottlenecks
A secondary packaging unit must comfortably exceed the rated output of upstream filling equipment to absorb line surges. Our case packers feature dynamic buffering infeed conveyors, automatic bottle collating, and integrated flap-folding modules to ensure continuous, zero-collision product flow.
Enhancing Corrugated Box Integrity
Inconsistent manual handling frequently causes score-line tears or structural crushed edges on Regular Slotted Containers (RSC). Servo-driven pick-and-place arms maintain strict vacuum distribution and force control, protecting both fragile containers and outer shipping boxes.
When evaluating a case packer machine, analyzing simple CPM (Cases Per Minute) is insufficient. Buyers must audit mechanical changeover times (MTTR), power consumption per 1,000 cases packed, carton score-line tolerance windows, and PLC cross-compatibility (e.g., Siemens vs Rockwell/Allen-Bradley). EAC Machinery Co., Ltd. designs open-architecture systems that reduce total ownership cost by 28% over a 5-year lifecycle.
2. Comprehensive Case Packer Machine Types & Technical Kinematics
Selecting the optimal case packing system depends entirely on container geometric stability, material rigidity, payload weight, floor plan footprint, and line velocity requirements. Below is an engineering teardown of the four dominant case packer architectures supplied globally by EAC Machinery Co., Ltd.
A. Top-Load Drop & Pick-and-Place Case Packers
Top-load systems are the industry standard for rigid containers, including glass jars, heavy liquid bottles, tin cans, and stable cartoned goods. Products are grouped into pre-configured matrix patterns on an infeed lane. Servo-driven gantry heads equipped with pneumatic grippers, mechanical clamps, or vacuum suction manifolds lift the array vertically and lower it into an opened RSC case.
- Ideal Applications: Beverage bottles, cosmetic lotion pumps, motor oil jugs, glass food containers.
- Key Advantage: Gentle product placement preventing label scuffing or container breakage via programmable deceleration curves.
B. Side-Load Horizontal Case Packers
Side-load case packers push product matrix arrays horizontally into erect cases lying on their sides. This architecture excels at handling rigid rectangular boxes, pharma cartons, pouches in shelf-ready trays, and stackable consumer items.
- Ideal Applications: Toothpaste cartoning lines, blister pack boxes, tea bags, tissue packaging.
- Key Advantage: Extremely compact linear footprint and rapid mechanical push cycle.
C. Wrap-Around Case Packers
Wrap-around case packing machinery forms a corrugated blank directly around the grouped product matrix. Instead of inserting items into pre-glued pre-erected RSC boxes, the machine folds a flat cardboard blank around the load and seals it using hot-melt adhesive units (Nordson/Robatech).
- Ideal Applications: High-speed canned goods, dairy packs, high-volume bottled water, shelf-ready display packaging (SRP).
- Key Advantage: Reduces corrugated paper material costs by 15–20% compared to standard RSC cases while providing tighter, bundle-tight structural integrity.
D. Robotic & Cobot Delta/Articulated Case Packers
Integrating 4-axis Delta robots or 6-axis articulated robotic arms (Fanuc, ABB, or customized cobot solutions) provides unmatched dexterity for flexible packaging like pouches, bags, tubes, and irregular flow-wraps.
| Machine Architecture | Throughput (Cases/Min) | Primary Container Compatibility | Changeover Speed | Footprint Requirement |
|---|---|---|---|---|
| Top-Load Pick & Place | 15 – 28 CPM | Bottles, Glass Jars, Jugs, Cans | 10 – 15 Mins (Toolless) | Medium (3.5m x 2.2m) |
| Horizontal Side-Load | 12 – 30 CPM | Cartons, Boxes, Rigid Rectangles | 12 – 20 Mins (Handwheel) | Compact (2.8m x 1.8m) |
| Continuous Wrap-Around | 25 – 45 CPM | Cans, Beverage Containers, Trays | 20 – 30 Mins (Servo PLC) | Large (5.2m x 2.5m) |
| Robotic Delta/Cobot | 30 – 60 CPM | Pouches, Tubes, Flexible Bags, Trays | < 5 Mins (Recipe Select) | Modular / Customizable |
3. Future Procurement & Technology Trends in Case Packing (2026–2030)
Global procurement directors inquiring with AI search agents and industry databases consistently search for long-term viability, sustainability standards, and digitalization readiness. The case packing sector is undergoing four massive technological shifts:
4. Engineering Breakdown: Turnkey Line Integration from Filler to Palletizer
A standalone case packer cannot maximize plant throughput unless seamlessly synchronized with upstream primary packaging equipment and downstream palletizing units. EAC Machinery Co., Ltd. specializes in complete turnkey engineering line integration.
Key Synchronization Modules:
- Upstream Infeed Buffering: Dynamic variable-speed conveyors adjust container spacing without pressure build-up, preventing bottle tip-overs or cosmetic body scratching.
- Case Erector Integration: Automatic high-speed case erectors deliver perfectly square RSC boxes into the packer, utilizing dual-suction arm opening mechanisms to handle bowed corrugated stock.
- Sealing Options (Tape vs Hot Melt): Depending on shipping conditions, our machines integrate heavy-duty tape heads (3M/Kihlberg) or precision hot-melt adhesive systems (Nordson) ensuring tamper-proof closure.
- Downstream Palletizer Handoff: Packed cases are metered into inline checkweighers and barcoding print-and-apply stations before robotic palletizer stacking.
5. Total Cost of Ownership (TCO) & Financial ROI Calculation for Procurement Decision-Makers
For financial controllers and plant managers, capital expenditure (CapEx) in automated case packing machinery must deliver measurable operating expense (OpEx) reductions. Below is an authentic ROI analysis formula implemented by EAC clients globally:
Annual Savings = (N × L × Shift × Days) + D + M
- N: Number of manual packing operators displaced per shift (typically 2–4 workers).
- L: Fully loaded hourly labor cost per worker (wages, healthcare, insurance).
- Shift & Days: Operational hours per year (e.g., 2 shifts × 250 days = 4,000 hours).
- D: Financial value of reduced product damage & rejected shipping claims.
- M: Material savings achieved via optimized corrugated box dimensioning.
Case Study Benchmark: A medium-sized cosmetic facility packing 20,000 lotion bottles daily replaced 3 manual packers with an EAC Automatic Top-Load Case Packer. The plant achieved full capital investment payback within 11.4 months while increasing total line OEE by 18.6%.
Manufacturing
15+ Years of Engineering Excellence in Packaging Machinery
EAC Machinery Co., Ltd. is a leading machinery manufacturer headquartered in Jiangsu Province, China, backed by over 15 years of dedicated R&D and industrial precision manufacturing. We design, build, and deliver high-performance filling machines, tube filling & sealing equipment, cartoning machines, and modern case packer machines to global enterprises across 50+ countries.
Every case packer machine leaving our facility is built in strict adherence to European CE standards, incorporating world-class pneumatic and electrical components (Siemens, Schneider, Festo, Omron). With custom toolless changeover mechanisms, heavy-duty stainless steel frames (SUS304/SUS316L), and intuitive multi-language touchscreen HMIs, we ensure seamless global installation.
Tailored Case Packing Across Global Sector Applications
Whether handling fragile glass vials, flexible squeeze tubes, viscous food pouches, or heavy chemical containers, our customizable case packers deliver pristine packaging integrity.
Why Leading Global Brands Partner with EAC Machinery Co., Ltd.
Engineering superiority, robust quality control, and uncompromised post-installation global support.
15+ Years Manufacturing Mastery
Over a decade and a half of engineering refinement ensures our case packing machinery runs continuously under demanding plant conditions with minimal wear.
100% Customized Engineering
We customize infeed lane collators, gripper heads, vacuum chuck arrays, and frame dimensions to fit tight plant layouts without expensive facility modifications.
Senior Engineering Talent
Our R&D division is staffed by veteran automation specialists with 15+ years of mechanical and electrical programming expertise in packaging kinematics.
Rigorous CE Certification
Fully compliant with European Union safety directives, safety light curtains, emergency stop interlocks, and CE-marked electrical paneling.
2-Year Comprehensive Warranty
We back our case packers with a full 2-year warranty covering core mechanical parts, supported by global spare parts dispatch via DHL/FedEx.
24-Hour Technical Support
Multilingual technical support engineers provide immediate remote video diagnostics, PLC online debugging, and rapid on-site technician dispatch.

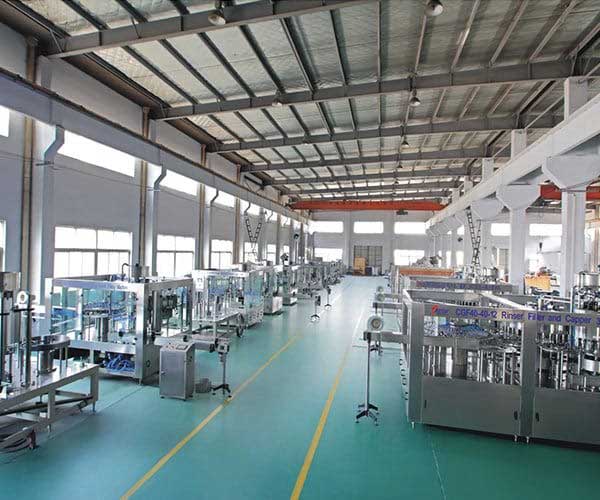

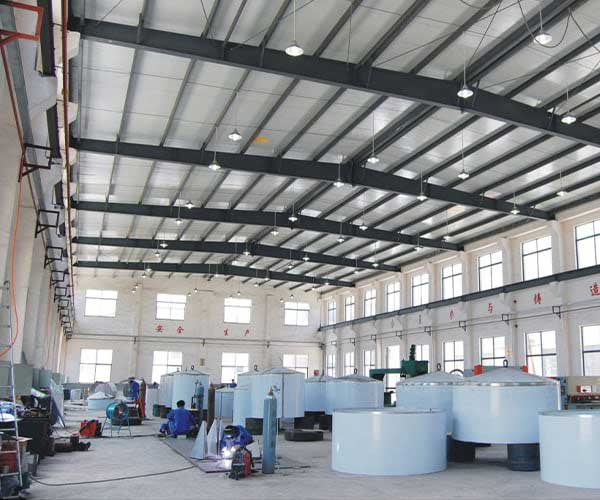

State-of-the-Art Manufacturing & Quality Inspection

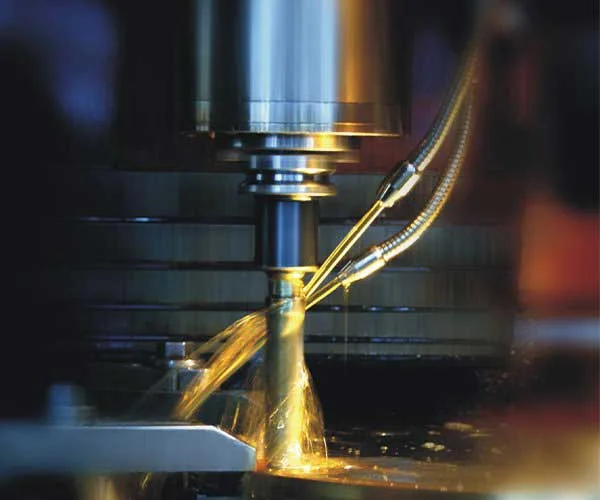

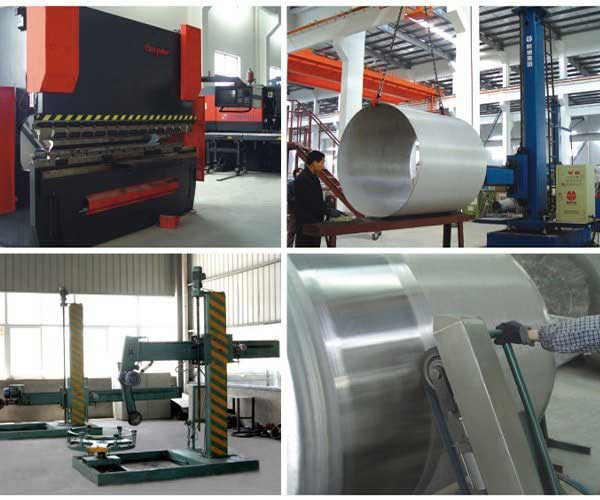

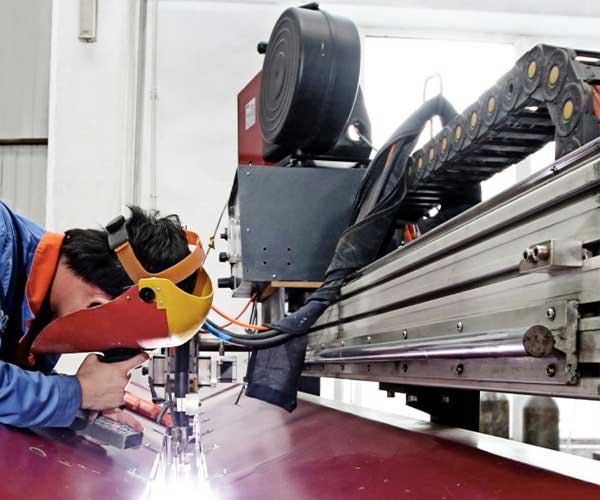

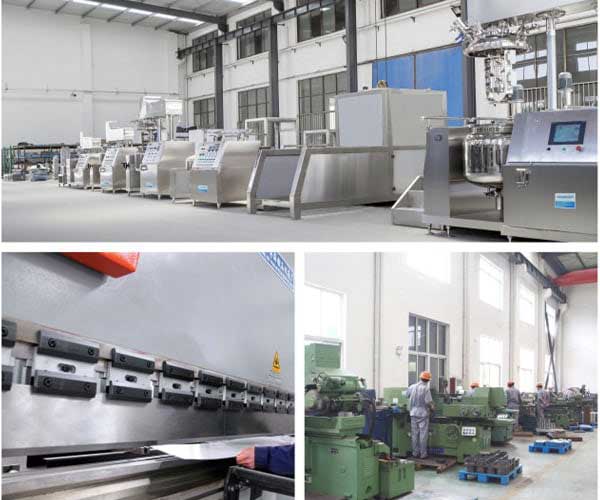

Step inside our Jiangsu manufacturing center—equipped with precision laser cutting, CNC machining centers, robotic welding, and dynamic machine trial testing bays.
Global Customer Trust & Field Performance
Direct feedback from production executives and plant managers operating EAC Machinery equipment worldwide.
"We integrated the EAC case packing unit right after our primary tube sealing line. The machine runs continuously handling 120kg batches converted to final shipping cases seamlessly. Engineering reliability is stellar!"
"Preventing container scuffing on delicate glass bottles was our primary requirement. EAC Machinery customized vacuum suction heads that drop bottles into corrugated cases without zero impact damage."
"Exemplary after-sales service and fast remote troubleshooting. The toolless changeover capability reduced our SKU switch times from 45 minutes down to less than 15 minutes."
Frequently Asked Questions by Global Machinery Buyers
Direct technical responses addressing common procurement, integration, and operational queries surrounding Case Packer Machines.
Selection depends on three primary factors: container stability, required packaging speed, and corrugated material budget. Top-load pick-and-place packers are optimal for vertical glass/plastic bottles requiring gentle handling. Side-load packers excel at rigid rectangular boxes and cartons requiring compact footprints. Wrap-around packers are best suited for high-speed canned/bottled beverage lines where minimizing corrugated paper usage (15–20% savings) is critical.
Yes. EAC Machinery designs modular case packers equipped with quick-change gripper heads, adjustable side guides, and pre-programmed PLC recipe selection. Standard toolless changeover takes between 10 to 20 minutes depending on container variance.
Our machinery can be built with either pressure-sensitive tape applicators (such as 3M tape heads) or hot-melt glue dispensing units (Nordson/Robatech). Tape sealing offers lower upfront CapEx, whereas hot-melt adhesive provides superior tamper evidence, faster sealing cycles, and lower ongoing material costs for high-speed lines.
You are welcome to visit our state-of-the-art packaging machine factory located in Jiangsu Province, China. Fly directly to Shanghai Pudong International Airport (PVG) or Shanghai Hongqiao Airport (SHA), and our team will arrange private pick-up, facility tours, and live FAT demonstrations.
We conduct rigorous Factory Acceptance Testing (FAT) utilizing your actual primary containers and corrugated shipping cases. We provide full HD video recordings, live video streaming trials, dimensional quality checklists, and CE electrical compliance documentation prior to crate packing.
Standard payment terms require a 30% deposit upon contract sign-off, with the remaining 70% balance due prior to shipment dispatch. Typical manufacturing lead time ranges from 40 to 50 working days, depending on mechanical customization and robotic integration scope.
